4CX Backhoe Loaders

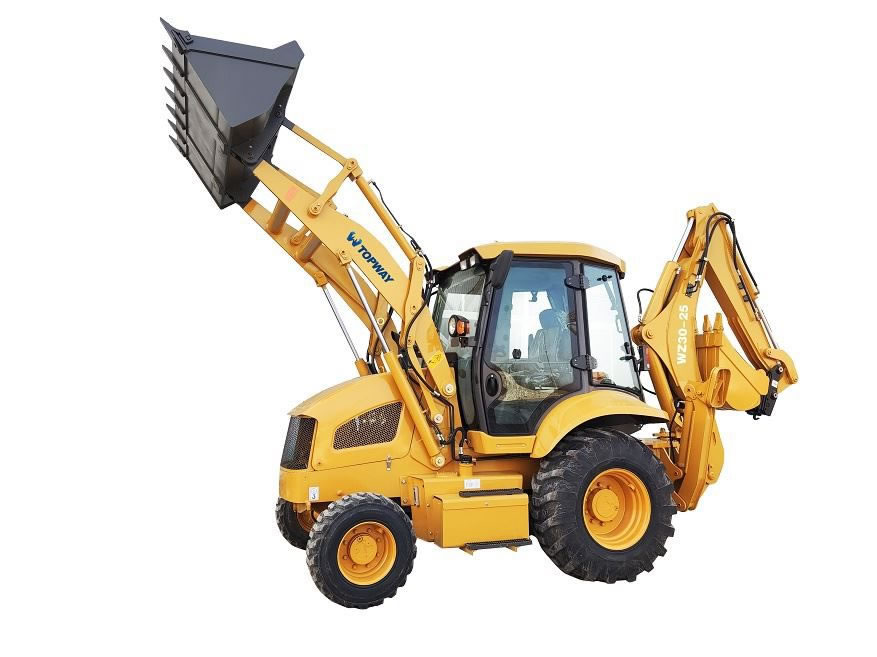

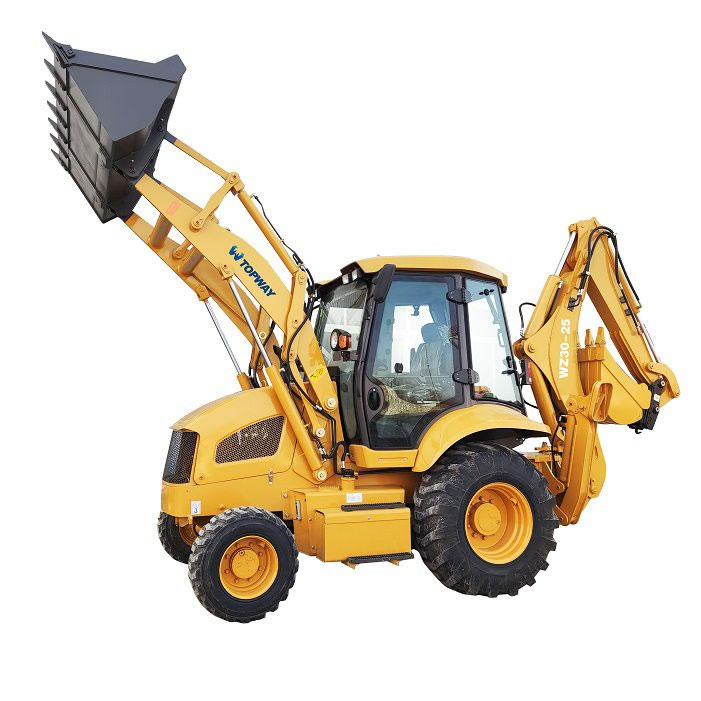

WZ30-25 integral type backhoe loader with Luxury ROPS&FOPS cabin, Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30%.

Send Inquiry

Product Details

Main Features

(1). To adopt the gearbox, torque converter provides a super power, walking steadily and higher reliability.

(2). To combine Excavator and loader as one machine, fully equipped with all function of mini excavator and loader, more suitable for operating in a narrow space, convenient and flexible, reducing the whole purchase cost and running cost.

(3). Excavation and loading function are pilot control, light and flexible, high efficiency.

(4). Humanized designed 360 degree swivel seat, all-steel cab of forming glass, more wide vision and more comfortable driving.

(5). Excavation slide slip device make the excavation operations broader and more efficient.

WZ30-25

Main Specifications

Overall Operating Weight	8200KG
Transport Dimension (LWH) mm	615022503763
Wheel base	2200mm
Min. Ground Clearance	300mm
Bucket Capacity	1.0m3
Breakout Force	38KN
Loading Lifting Capacity	2500KG
Bucket Dumping Height	2742mm
Bucket Dumping Distance	1062mm
Digging Depth	52mm
Backhoe Capacity	0.3 m3
Max. Digging Depth	4082mm
Swing Angle of Excavator Grab	190o
Max. Pulling Force	39KN
Engine (Dongfeng Cummins)
Model	4BTA3.9-C100
Rated Power	74KW/100HP
Rated Speed	2400r/min
Steering System
Model of Steering Device	BZZ5-250
Steering Angle	±36 o
Min. turning radius	6581mm
Pressure of the system	12Mpa
Axle
Manufacturer	Feicheng Axle Factory
Main Transmission Type	Double Reduction
Reducer	Single Stage Final Reducer
Rated Loader of Axle	4/18.5t
Transmission System
Torque Converter
Model	YJ280
Type	Single-stage Three Elements
Max. Efficiency	84.40%
Inlet Pressure	0.4Mpa—0.55 Mpa
Outlet Pressure	1.2Mpa—1.5 Mpa
Cooling Method	Oil-cooling Pressure Circulation
Gearbox
Type	Fixed Shaft Power Transmission
Oil Pressure of Clutch	1373Kpa—1569 Kpa
Gears	Two Gears Ahead, Two Gears Astern
Max.Speed	22Km/h
Tyre
Model	14-17.5/19.5L-24
Pressure of Front wheel	0.22 Mpa
Pressure of Back Wheel	0.22 Mpa
Brake System
Service Brake	Air Over Oil Caliper Brake, External Type, Self-regulation, Self-balance
Emergency Brake	Operation Power Implementing brake, Manual Operation Power Terminating Brake
Hydraulic System
Digging Power of Excavator Grab	46.5KN
Digging Power of Dipper	31KN
Bucket Lifting Time	5.4S
Bucket Lowering Time	3.1S
Bucket Discharge Time	2.0S
