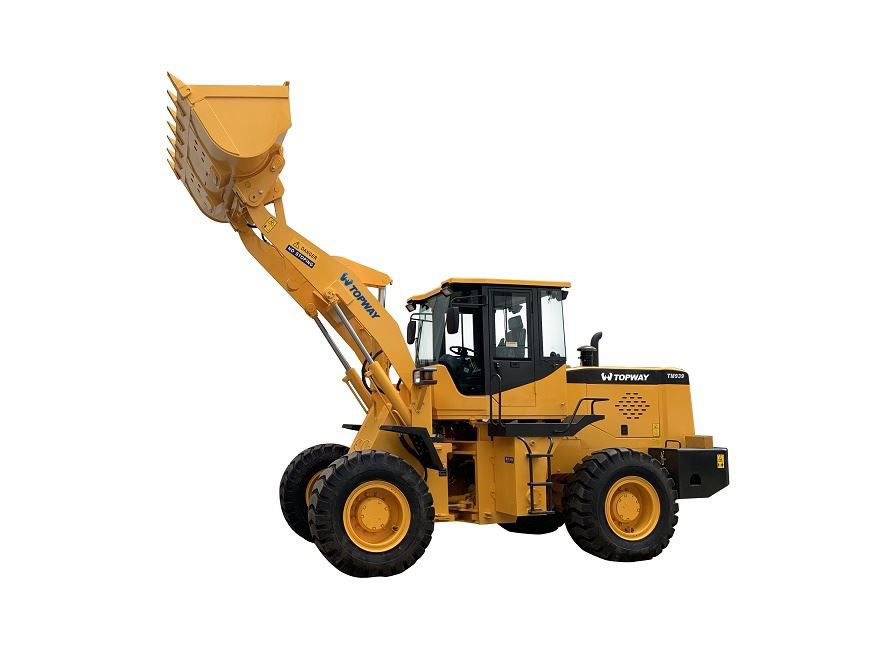

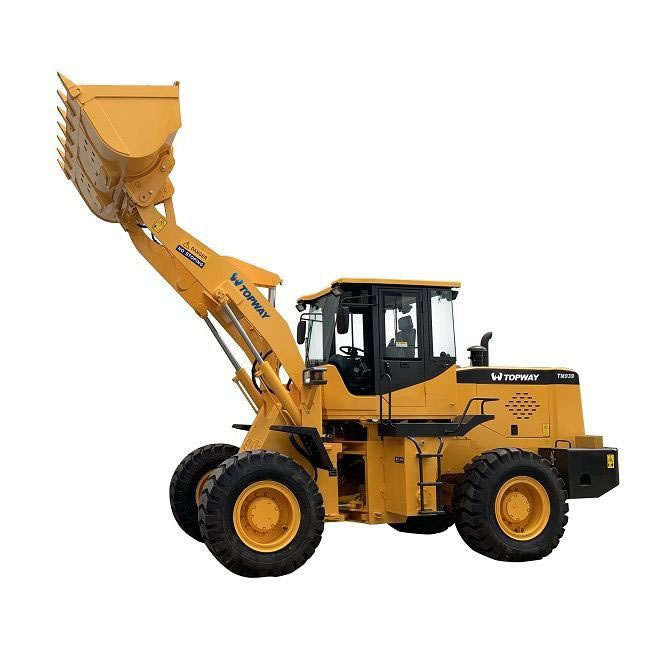

TM939 3.0 Ton 2.0 CBM Loaders

TM939 3.0 Ton 2.0 CBM Loaders

TM939 3.0Ton wheel loader with Deutz or Cummins engine, A/C and Joystick, 5ton planetary gearbox, more powerful, high quality, very good price
Product Details

TM939 3.0Ton wheel loader with Deutz or Cummins engine, A/C and Joystick, 5ton planetary gearbox, more powerful, high quality, very good price


Main Features

1. This loader install 5ton planetary gearbox, transmission and torque are superior in excellent universality and low maintenance cost

2. High Reliability of this wheel loader

Upgraded & enhanced front & back frames, Reinforced counterweight, Fully optimized layout of pipes, Waterproof connectors, Improved painting process

3. High Efficiency and Energy Conservation for this loader

Patented dual-pump confluence and diffluence technology, Standard models provide the highest dumping height, Small turning radius, Green, turbocharged, intercooled engine

4. Front End Loader Safety

Complete safety signs, Optional ROPS/FOPS cab, Flame retardant materials and EU-certified glass are used in the cab, offering higher safety

5. Comfortable Operation of this pay loader

Ergonomic design for more comfortable operation, Large space in the H-series cab, The low-noise and shock-absorbing cab, Electronic oil level indicator comes as standard, Optional models with adjustable directions

6. Convenient Maintenance for this shovel loader

Leading-out grease fitting is convenient for lubrication, The brake caliper is exposed to facilitate servicing, Central electrical control box for easier servicing, Wide-opening hood for easier servicing & maintenance of engine, Convertible fuel tank, Optimized servicing marks

7. Multifunctional

Standard bucket, Rock bucket, Enlarged bucket, Flat sand bucket, Log grapple(single clamping arm, Log grapple (double clamping arm), Grass grapple, Snow blade, Side dump bucket, Quick coupling bucket, Quick coupling 4-in-1 bucket, Quick coupling log grapple, Quick coupling fork


TM939


Specifications

Model

TM939

Operating weight

10,500 kg

Rated load

3,000 kg

Bucket capacity

1.7m³

Engine model

Deutz WP6G125E22

Rated engine power

92kw

Rated rotate speed

2200r/min

Maximum torque

500N.m

Breakout force

98KN

Driving speed


Forward Ⅰ

0-11km/h

Forward Ⅱ

0-38km/h

Reverse Ⅰ

0-16km/h

Grade ability

28°

Overall length

7,450mm

Overall width

2480mm

Overall height

3200mm

Wheel base

2870mm

Track base

1800mm

Minimum ground clearance

450mm

Maximum dumping height

3400mm

Maximum dumping reach

1297mm

Raise time

≤6.8s

Total

≤12.5s

Fuel Tank

180L

Tyre type

17.5-25
